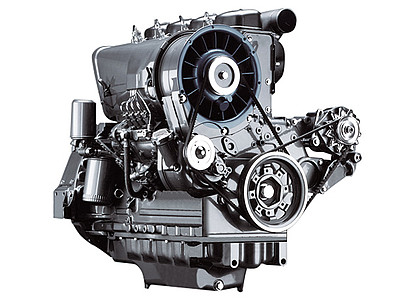

F 5 L 912 (Agri)

Engine for agricultural machinery.
Air-cooled 5-cylinder naturally aspirated in-line engine.
Advanced direct injection and combustion system.
Electronic governor on request.
100% PTO possibilities at flywheel and damper end.
Auxiliary PTOs for hydraulic pumps and compressor possible.
Enormous traction through high torque backup.
Thanks to sophisticated modular system high degree of parts commonality.
Extremely compact dimensions.

Technical data
Emission norms EU II, US T2
Number of cylinders 5
Bore 102 mm4 in
Stroke 132 mm5.2 in
Displacement 5.4 l327 cu in
Maximum nominal speed 2500 rpm
Power output 68 kW91 hp
at speeds 2300 rpm
Max. torque 308 Nm227 lb/ft
at speeds 1450 rpm
Min. idling speed 650 rpm
Specific fuel consumption 223 g/kWh0.37 lb/hph
Length 954 mm37.6 in
Width 679 mm26.7 in
Height 833 mm32.8 in
Weight 380 kg838 lb
Download data sheet (PDF-file)
