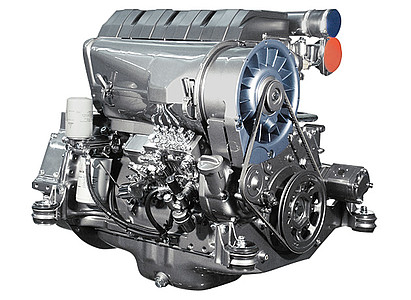

BF 6 L 914 C

Air cooles 6-cylinder turbocharge engine.
Displacement: 1.1 l / cylinder.
Modular sytem with single cylinder unit.
Advanced injection and combustion system.
Electronic governor on request.
Worldwide approved: more than 3.0 Mio. engines in use.
Only few maintenance points.
Compact power-pack with low weight.

Technical data
Emission norms EU II, US T2
Number of cylinders 6
Bore 102 mm4 in
Stroke 132 mm5.2 in
Displacement 6.5 l397 cu in
Maximum nominal speed 2500 rpm
Power output 130 kW174 hp
at speeds 2500 rpm
Max. torque 700 Nm516 lb/ft
at speeds 1600 rpm
Min. idling speed 650 rpm
Specific fuel consumption 215 g/kWh0.35 lb/hph
Length 1166 mm45.9 in
Width 683 mm26.9 in
Height 919 mm36.2 in
Weight 510 kg1124 lb
Download data sheet (PDF-file)
