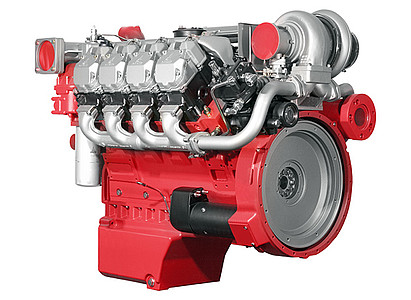

TCD 2015 V06 (Agri)

Engine for agricultural machinery.
V-engine with 90° angle.
turbocharging and charge air cooling, four-valve technology
Extremely compact and powerful with high power density.
Electronic injection system controlled via solenoid valves.
Tried, tested and proven technology, equipped with acoustically optimised components

Technical data
Emission norms EU IIIA, US T3
Number of cylinders 6
Bore 132 mm5.2 in
Stroke 145 mm5.7 in
Displacement 11.9 l726 cu in
Maximum nominal speed 2100 rpm
Power output 360 kW483 hp
at speeds 2100 rpm
Max. torque 2080 Nm1534 lb/ft
at speeds 1300 rpm
Min. idling speed 600 rpm
Specific fuel consumption 202 g/kWh0.33 lb/hph
Length 985 mm38.8 in
Width 932 mm36.7 in
Height 1141 mm44.9 in
Weight 1020 kg2249 lb
Download data sheet (PDF-file)
