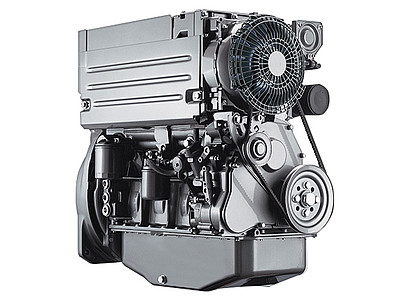

F 2 L 2011

2-cylinder turbocharged engine.
Integrated cooling system (engine is supplied complete with heat exchanger).
Cooling and lubrication with oil.
14% more power output in comparison to the successor 1011F.
100% extended belt change interval.
PTO for hydraulic pump drive is increased by 55% at 28kW/2800 min-1.
All service points on one engine side.
Compact engine design.

Technical data
Emission norms EU II, US T2
Number of cylinders 2
Bore 94 mm3.7 in
Stroke 112 mm4.4 in
Displacement 1.6 l95 cu in
Maximum nominal speed 2800 rpm
Power output 23 kW31 hp
at speeds 2800 rpm
Max. torque 90 Nm66 lb/ft
at speeds 1700 rpm
Min. idling speed 900 rpm
Specific fuel consumption 220 g/kWh0.36 lb/hph
Length 407 mm16 in
Width 451 mm17.8 in
Height 683 mm26.9 in
Weight 175 kg396 lb
Download data sheet (PDF-file)
