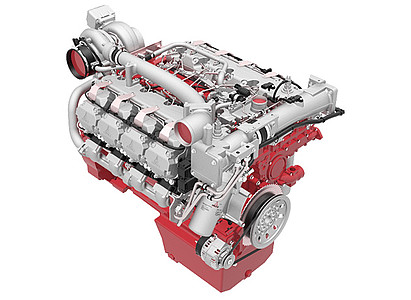

TCD 16.0 V8 (Agri)

Engine for agricultural machinery.
Water-cooled, V version (90°) 8-cylinder engine with turbocharging and charge air cooling.
Engine and exhaust aftertreatment (EAT) are optimised for highest total system efficiency and thus ensure minimised fuel and total operating costs.
Thanks to SCR technology, the cooler sizes do not need to be enlarged in comparison with Tier 3 engines. Fuel consumption is reduced. The exhaust gas aftertreatment system is maintenance free.
Consistent installation and connection dimensions of the engine facilitate the changeover of existing installations to the next stage of the emission legislation.
100% power take-off at flywheel and front end and additionally up to three PTO drives with a total torque of up to 520 Nm.
The engine has a modular exhaust aftertreatment system (EAT) with components from the DVERT® kit and optional configuration variants. This means a high flexibility in machine integration for the OEM.
The extremely compact engine design and customer friendly accesoires reduce the installation costs and increase the number of applications.
The engine is also available as a flat version for extremely compact installations.
The powerful Common Rail injection system and the electronic engine control (EMR 4) with intelligent link to the drive management ensure optimum engine performance at low fuel consump-tion.
Best cold starting performance even under extreme conditions.
The engine meets the requirements of the EU Stage IIIB & IV and US EPA Tier 4 interim & Tier 4 with SCR. A variant without EAT is available as an option for less regulated markets.

Technical data
Emission norms EU V, US T4f, EU IV
Series TCD 12.0 V / 16.0 V
Number of cylinders 8
Bore 132 mm5.2 in
Stroke 145 mm5.7 in
Displacement 15.9 l970 cu in
Maximum nominal speed 2100 rpm
Power output 520 kW697 hp
at speeds 2100 rpm
Max. torque 2890 Nm2132 lb/ft
at speeds 1400 rpm
Min. idling speed 600 rpm
Specific fuel consumption 202 g/kWh0.33 lb/hph
Length 1150 mm45.3 in
Width 945 mm37.2 in
Height 1170 mm46.1 in
Weight 1260 kg2778 lb
Download data sheet (PDF-file)
