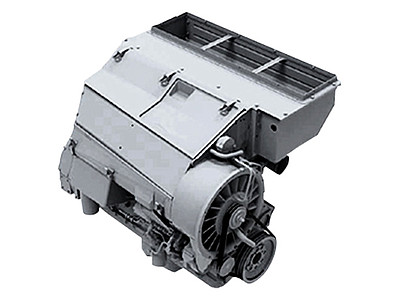

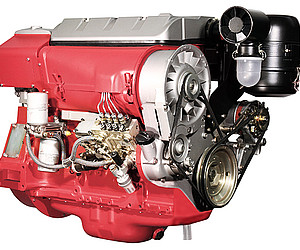

TCD 914 L6 M

Air-cooled 6-cylinder engine for auxiliary drives with turbocharging and charge-air cooling.
Due to the air cooling, the integration of the engine into the classic engine-cool- ing version of marine engines is omitted. Installation of the unit onto the deck is possible.
The very compact engine design and the flexibility of the positioning of the unit reduce the installation costs.
Low fuel consumption, low maintenance costs and long life reduce the running costs.
DEUTZ marine engines are developed especially for the requirements of marine applications and meet the requirements of the classification societies. Type Approvals of the IACS classes1) and other classes are available on re- quest.
The robust engine design allows worldwide operation even with high sulphur fuels.

Technical data
Number of cylinders 6
Bore 102 mm4 in
Stroke 125 mm4.9 in
Displacement 6.1 l372 cu in
Propulsion engines LG A 120 kW161 hp
Specific fuel consumption 200 g/kWh0.33 lb/hph
Length 1090 mm47 in
Width 965 mm38 in
Height 1048 mm41.3 in
Weight 570 kg1257 lb
Download data sheet (PDF-file)
