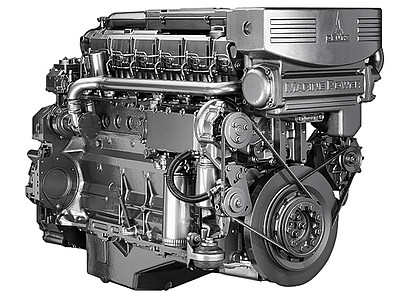

BF 4 M 1013 M

Water-cooled, four-stroke, 4-cylinder in-line engine
water-cooled turbocharger and exhaust pipes
gear-driven power take-offs
modern high-pressure injection system with single injection pumps
charge air cooling by engine coolant in keel cooled configuartion or raw water cooled
compact dimensions
easily accessible maintenance and service points on one side of the engine

Technical data
Number of cylinders 4
Bore 108 mm4.3 in
Stroke 130 mm5.1 in
Displacement 4.8 l293 cu in
Propulsion engines LG A 81 kW109 hp
Propulsion engines LG B 95 kW127 hp
Specific fuel consumption 217 g/kWh0.36 lb/hph
Length 1125 mm44.3 in
Width 666 mm26.2 in
Height 1185 mm46.7 in
Weight 560 kg1235 lb
Download data sheet (PDF-file)
