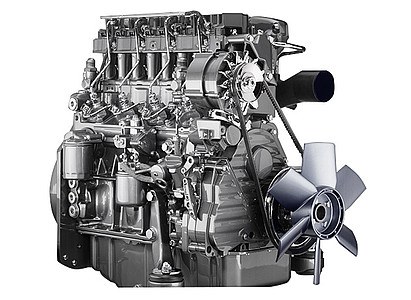

F 3 M 2011

3-cylinder turbocharged engine.
Oil-cooled (with conventional cooling system).
13% more power in comparison to the successor 1011F.
100% extended belt change interval.
PTO for hydraulic pump drive is increased by 55% at 28 kW/2800 min-1.
All service points on one engine side.
Compact engine design.

Technical data
Emission norms EU II, US T2
Number of cylinders 3
Bore 94 mm3.7 in
Stroke 112 mm4.4 in
Displacement 2.3 l142 cu in
Maximum nominal speed 2800 rpm
Power output 36.5 kW49 hp
at speeds 2800 rpm
Max. torque 140 Nm103 lb/ft
at speeds 1700 rpm
Min. idling speed 900 rpm
Specific fuel consumption 219 g/kWh0.36 lb/hph
Length 519 mm20.4 in
Width 451 mm17.8 in
Height 678 mm26.7 in
Weight 208 kg459 lb
Download data sheet (PDF-file)
