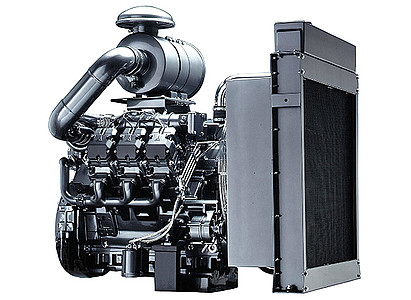

BF 6 M 1015 C

Water-cooled V6 engine with turbocharging, charge air cooling and four-valve technology.
Also available with an electronic motor regulator (EMR) to allow easy integration into the electronic device control and monitoring system.
The robust engine design allows worldwide operation even with high sulphur fuels.
Low noise emissions due to acoustically optimized components with very smooth running and high durability.
Robust and reliable mechanical injection system.
Best cold starting performance even under extreme conditions.
A very good load response ensures an immediate power supply.

Technical data
Emission norms EU II, US T2
Number of cylinders 6
Bore 132 mm5.2 in
Stroke 145 mm5.7 in
Displacement 11.9 l727 cu in
Typical generator power at 50 Hz / 1500 rpm
Typical generator power (COP) 285 kW382.2 hp
Typical generator power (PRP) 315 kW422.4 hp
Typical generator power (LTP) 345 kW462.7 hp
Typical generator power at 60 Hz / 1800 rpm
Typical generator power (COP) 271 kW363 hp
Typical generator power (PRP) 310 kW416 hp
Typical generator power (LTP) 341 kW457 hp
Length 1635 mm64 in
Width 1315 mm52 in
Height 1865 mm73 in
Weight 1020 kg2249 lb
Download data sheet (PDF-file)
