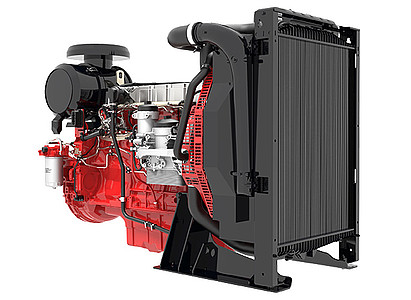

TCD 2013 L6 2V

Watercooled 6-cylinder inline engine with turbocharging and charge air cooling.
The powerful DEUTZ Common Rail (DCR®) injection system and the electronic engine control (EMR 4) with intelligent link to the drive management ensure optimum engine performance at low fuel consumption.
Wet cylinder liners, long oil change intervals and easy changing of the engine fluids reduce the running costs and increase the availability of the machinery.
Low noise emissions due to acoustically optimized components with very smooth running and high durability.
Easy, inexpensive installation due to minimum weight and small installation space.
Air filter and cooling system are fully pre-assembled. Best cold starting performance even under extreme conditions.
The TCD 2013 meets the requirements of EU Stage IIIA.

Technical data
Emission norms EU IIIA, US T3
Number of cylinders 6
Bore 108 mm4.3 in
Stroke 130 mm5.1 in
Displacement 7.2 l439 cu in
Typical generator power at 50 Hz / 1500 rpm
Typical generator power (COP) 136 kW182 hp
Typical generator power (PRP) 144 kW193 hp
Typical generator power (LTP) 151 kW203 hp
Typical generator power at 60 Hz / 1800 rpm
Typical generator power (COP) 156 kW209 hp
Typical generator power (PRP) 165 kW221 hp
Typical generator power (LTP) 174 kW233 hp
Length 1909 mm75 in
Width 879 mm35 in
Height 1263 mm50 in
Weight 815 kg1797 lb
Download data sheet (PDF-file)
