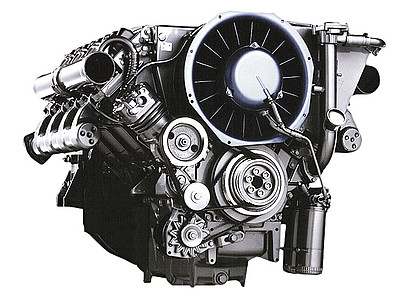

F 12 L 413 FW

The robust engine design guarantees high operational safety, also even under extreme conditions when working underground
The very compact engine design of the V engine and the integrated cooling system reduce the installation costs.
Low operating costs due to low fuel consumption, low amounts of ventilation, as well as long maintenance intervals with low maintenance requirements.
Capacity: 1.6 l/cylinder, modular system with single cylinders.
Certified in accordance with US-MSHA (Mine Safety and Health Administation).

Technical data
Emission norms EU II, US T2
Number of cylinders 12
Bore 125 mm4.9 in
Stroke 130 mm5.1 in
Displacement 19.1 l1166 cu in
Maximum nominal speed 2300 rpm
Power output 204 kW274 hp
at speeds 2300 rpm
Max. torque 995 Nm734 lb/ft
at speeds 1500 rpm
Min. idling speed 600 rpm
Specific fuel consumption 276 g/kWh0.45 lb/hph
Length 1448 mm57 in
Width 1038 mm40.9 in
Height 1007 mm39.6 in
Weight 1120 kg2469 lb
Download data sheet (PDF-file)
